NXF ASTM A240 316H/1Cr17Ni12Mo2/31609 DN15-1200 Class150-1500 Stainless Steel 316H Forging ANSI B16.5 Blind Flange

Product Categories

NXF GROUP (New XiFei (SuZhou) Business Co.,Ltd)

Contact Now

31609 DN15-1200 Class150-1500 Stainless Steel 316H Forging ANSI B16.5 Blind Flange

Ask Lasest Price
Brand Name :	NXF
Model Number :	DN15-1200
Certification :	ISO CE
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300ton/month
Delivery Time :	5-8 work days
MOQ :	1 Piece

Add to Cart

Product Details
Company Profile

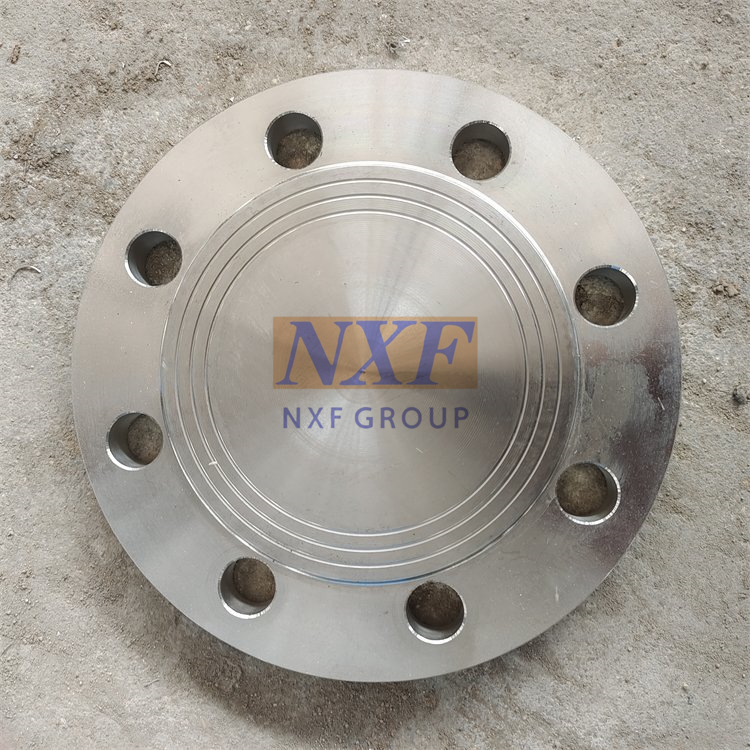

NXF ASTM A240 316H/1Cr17Ni12Mo2/31609 DN15-1200 Class150-1500 Stainless Steel 316H Forging ANSI B16.5 Blind Flange

Product Description

Alloy 316H (UNS S31609) is a high carbon modification of Alloy 316 developed for use in elevated temperature service. The alloyhas higher strength at elevated temperatures and is used for structural and pressure vessel applications at temperatures above932°F (500°C). The higher carbon content of 316H also delivers higher tensile and yield strength than 316/316L and its austeniticstructure provides excellent toughness down to cryogenic temperatures.The corrosion resistance of Alloy 316H is comparable to Alloy 316/316L and is superior to Alloy 304/304L in moderately corrosiveenvironments. It is often used in process streams containing chlorides or halides. The alloy resists atmospheric corrosion, aswell as, moderately oxidizing and reducing environments. It also resists corrosion in polluted marine conditions.Alloy 316H is non-magnetic in the annealed condition. It cannot be hardened by heat treatment, however the material will hardendue to cold working. It can be easily welded and processed by standard shop fabrication practices.

Blind flange‌ is a flange used in a piping system to completely close the end of a piping. It has no central holes and is mainly used to isolate, seal or temporarily close the piping system. Blind plate flanges are usually made of carbon steel, stainless steel, alloy steel and other materials. The appropriate materials are selected according to different working environments and media characteristics to ensure corrosion resistance and mechanical strength.

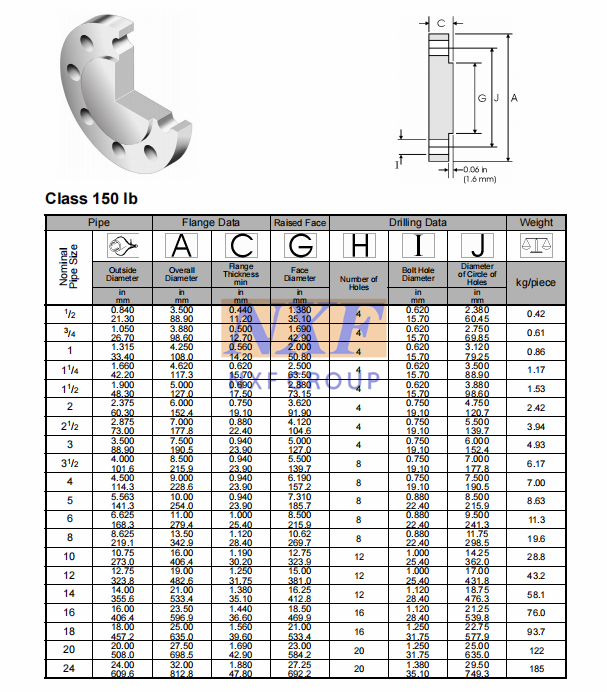

316H Blind Flange Drawing

316H of Chemical composition and mechanical properties

Specification

Product name	Blind Flange
Material	SS316H
OD	DN15-1200
Pressure	Class150-1500
Standard	ANSI JIS DIN ASME
MOQ	1 Piece
Surface	Polished
Application	Industry
Packing	Standard Seaworthy Packing
Brand	NXF
