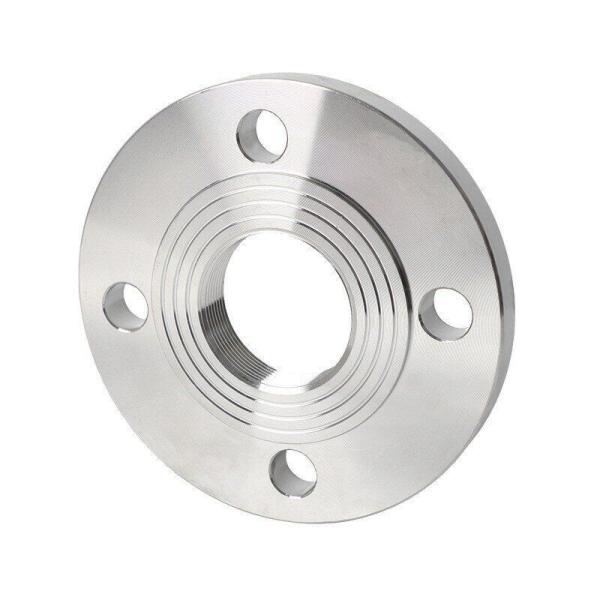

OD 1/2-24 INCH Monel 400 Threaded Flange UNS N04400/NiCu30Fe/NA12/NU13 Forged Steel Alloy JIS ASME DIN ISO ANSI B16.5

Product Description

Monel 400 alloy (UNS N04400 or MCu-28-1.5-1.8 or Ni68Cu28Fe) is a nickel-based alloy material with good corrosion resistance in seawater, chemical solvents, ammonia sulfur chloride, hydrogen chloride, various acidic media such as sulfuric acid, hydrofluoric acid, hydrochloric acid, phosphoric acid, organic acid, alkaline media, salt and molten salt. Monel 400 alloy also has good mechanical properties, from low temperature to high temperature wide range of use temperature, with good welding performance and medium and high strength.

Threaded flange refers to a flange that is connected to the pipeline by threads. When designing, it can be treated as a loose flange. The advantage is that welding is not required, and the additional torque generated on the cylinder or pipeline when the flange is deformed is very small. The disadvantage is that the flange is thick and the cost is high. It is suitable for the connection of high-pressure pipelines. Threaded flange is a non-welded flange in which the inner hole of the flange is processed into pipe threads and connected with a threaded pipe. Compared with flat welding flanges or butt welding flanges, threaded flanges are easy to install and maintain, and can be used on some pipelines where welding is not allowed on site. Alloy steel flanges have sufficient strength, but are not easy to weld, or have poor welding performance, so threaded flanges can also be selected.

Specification

item	value
Standard	ANSI, DIN, ISO, JIS, ASME
Place of Origin	China
	Jiangsu
Brand Name	NXF
Model Number	Flange
Product name	Monel 400 Threaded Flange
Material	UNS N04400/NiCu30Fe/NA12/NU13
Standard	ASTM A105, ASTM A182, ASME B16.5, BS 3293, DIN 86029.
OD	1/2-24 INCH
Pressure	150-2500LB
Manufacturing Process	Forged
Type	Flange
Brand	NXF
Packing	Wooden Case
MOQ	1pc

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Production Equipment

Customer Visit

New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals, machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories. Established in 1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship." Our advantage:3S Service(Small Quantity/Short Time/Special Material)

Certifications

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
