NXF DN 15-1200 Class 150-2500 Product Type ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Threaded Flanges

Product Categories

NXF GROUP (New XiFei (SuZhou) Business Co.,Ltd)

Contact Now

NXF DN 15-1200 Class 150-2500 Product Type ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Threaded Flanges

Ask Lasest Price
Brand Name :	NXF
Certification :	ISO CE
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300ton/month
Delivery Time :	5-8 works
MOQ :	1 Piece

Add to Cart

Product Details
Company Profile

NXF DN 15-1200 Class 150-2500 Product Type ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Threaded Flanges

Product Description

Designated as UNS N06035 or DIN 2.4643, Hastelloy G-35 is a nickel-chrimium-molybdenum alloy designed to resist “wet process” phosphoric acid, which is used in the production of fertilizers. Similar to Hastelloy G-30, G35 alloy also has excellent resistance to localized attack in the presence of chlorides, since this can be a problem beneath deposits in evaporators used to concentrate “wet process” phosphoric acid. Besides, it is much less susceptible to chloride-induced stress corrosion cracking than the stainless steels and nickel-chromium-iron alloys traditionally used in “wet process” phosphoric acid. Due to the high chromium content, Hastelloy G-35 is high to other oxidizing acids, such as nitric, and mixtures containing nitric acid. It possesses moderate resistance to reducing acids, as a result of its appreciable molybdenum content, and, unlike other Ni-Cr-Mo alloys, it is very resistant to “caustic de-alloying” in hot sodium hydroxide.

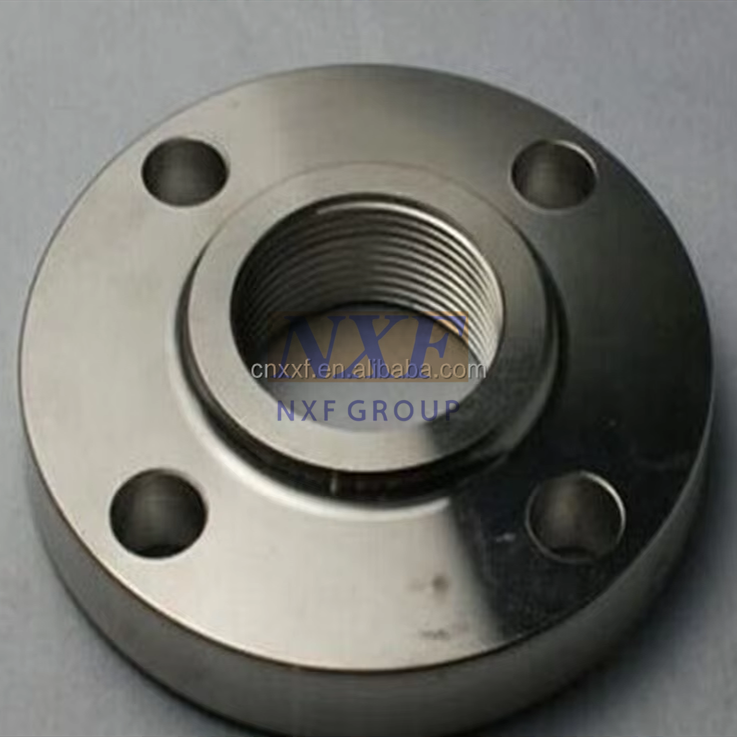

Threaded flange refers to a flange that is connected to the pipe by threads. When designing, it can be treated as a loose flange. The advantage is that welding is not required, and the additional torque generated on the cylinder or pipe when the flange is deformed is very small. The disadvantage is that the flange is thick and the cost is high. It is suitable for the connection of high-pressure pipelines.Threaded flange is a non-welded flange that has its inner hole processed into pipe threads and is connected to threaded pipes. Compared with flat welding flanges or butt welding flanges, threaded flanges are easy to install and maintain, and can be used on pipelines where welding is not allowed on site. Alloy steel flanges have sufficient strength, but are not easy to weld, or have poor welding performance, so threaded flanges can also be selected. However, when the pipeline temperature changes sharply or the temperature is higher than 260℃ and lower than -45℃, it is recommended not to use threaded flanges to avoid leakage.

Alloy G-35/UNS N06035 of Chemical composition and mechanical properties

NXF DN 15-1200 Class 150-2500 Product Type ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Threaded Flanges

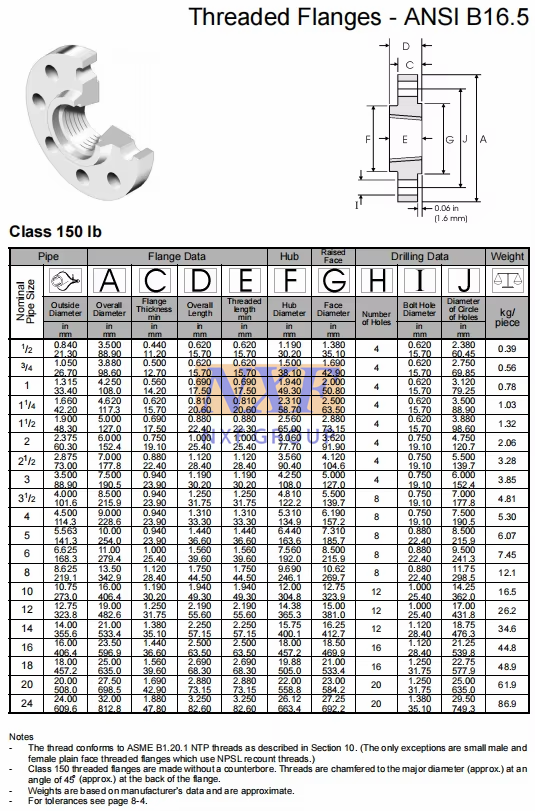

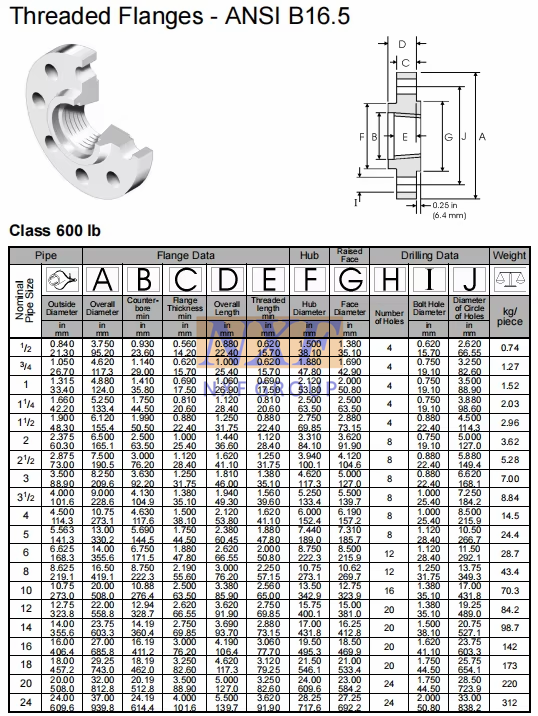

Alloy G-35/UNS N06035 Threaded Flange Drawing NXF DN 15-1200 Class 150-2500 Product Type ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Threaded Flanges

NXF DN 15-1200 Class 150-2500 Product Type ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Threaded Flanges

Product processing

NXF DN 15-1200 Class 150-2500 Product Type ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Threaded Flanges

Specification

Head Code	Round
Warranty	3 years
Product Material	Alloy G-35/UNS N06035
Customized support	OEM
Connection	Threaded
Product name	Threaded Flanges
OD	DN 15-1200
Pressure	Class 150-2500
MOQ	1 Piece
Packing	Wooden Box
Usage	Oil Gas Water Industrial

Packing & Delivery

NXF DN 15-1200 Class 150-2500 Product Type ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Threaded Flanges

Company Profile

NXF DN 15-1200 Class 150-2500 Product Type ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Threaded Flanges

Application Areas

NXF DN 15-1200 Class 150-2500 Product Type ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Threaded Flanges

Certification

NXF DN 15-1200 Class 150-2500 Product Type ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Threaded Flanges

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
