Home > Special alloy flange >

ASTM/DIN/ISO/JIS/ASME Inconel X750 Blind Flange Class 150-2500 Plate Flange Ni Alloy ISO JIS ASME DIN Pressure 150-2500LB

Product Categories

NXF GROUP (New XiFei (SuZhou) Business Co.,Ltd)

Contact Now

ASME Inconel X750 Blind Flange Class 150-2500 Plate Flange Ni Alloy ISO JIS ASME DIN Pressure 150-2500LB

Ask Lasest Price
Brand Name :	NXF
Model Number :	Flange
MOQ :	1pc
Price :	$5.00/pieces 10-99 pieces

Add to Cart

Product Details
Company Profile

ASTM/DIN/ISO/JIS/ASME Inconel X750 Blind Flange Class 150-2500 Plate Flange Ni Alloy ISO JIS ASME DIN Pressure 150-2500LB

Product Description

Inconel X-750 alloy is mainly a γ "[Ni3(Al, Ti, Nb)] phase aging strengthened nickel based superalloy, with good corrosion resistance and oxidation resistance below 980℃, high strength below 800℃, and good relaxation resistance below 540℃. It also has good formability and weldability. The alloy is mainly used in the manufacture of plane springs and helical springs that are resistant to relaxation and require high strength for aircraft engines operating below 800 ° C. It can also be used to manufacture turbine turbine blades and other parts. The varieties available are sheet, strip, bar, forgings, rings, wire and tubing.

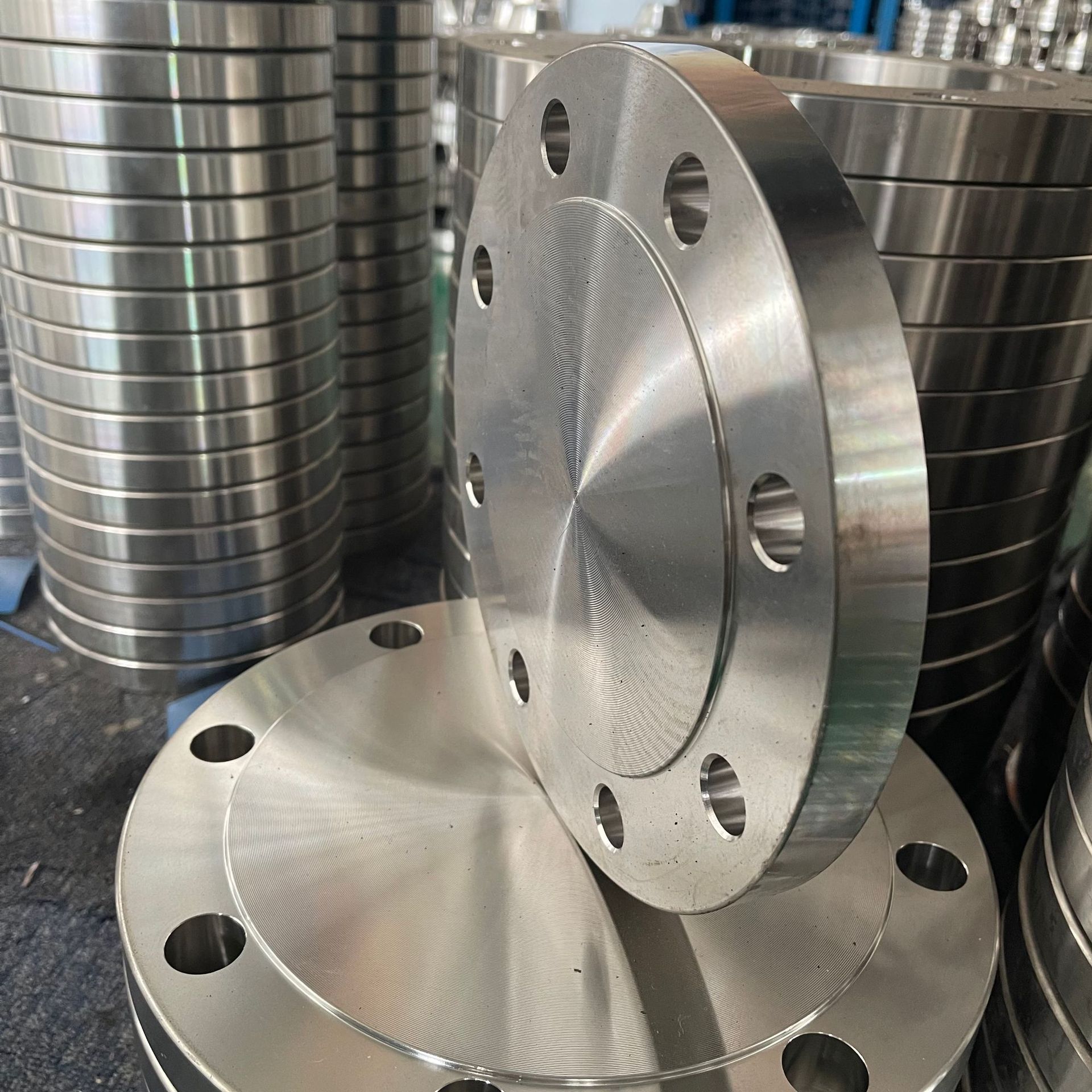

Blind flange is a type of flange connection, which is actually a flange without a hole in the middle. One of its functions is to block the end of the pipe, and the other is to facilitate the removal of debris in the pipe during maintenance. In terms of blocking, it has the same function as the head and the pipe cap. However, the head cannot be disassembled, while the blind flange is fixed with bolts and is very easy to disassemble. The materials of the blind flange include carbon steel, alloy steel, stainless steel, plastic, etc.

Specification

item	value
Standard	ANSI, DIN, ISO, JIS, ASME
Place of Origin	China
	Jiangsu
Brand Name	NXF
Model Number	Blind Flange
Product name	Inconel X750 Blind Flange

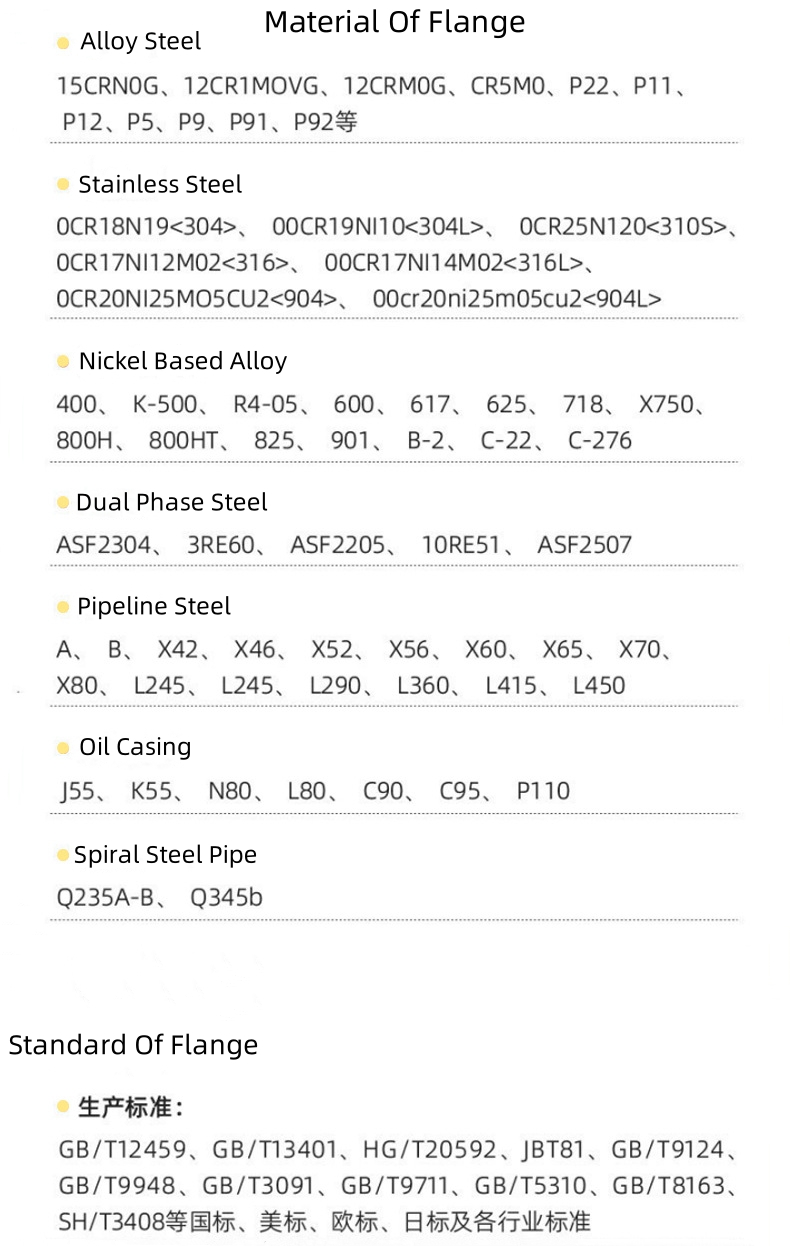

Material Of Flange	UNS N07750
Standard Of Flange	ASTM/DIN/ISO/JIS/ASME
OD	1/2-24 INCH
Pressure	150-2500LB
Manufacturing Process	Forged
Type	Blind Flange
Brand	NXF
Packing	Wooden Case
MOQ	1pc

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Production Equipment

Customer Visit

New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals, machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories. Established in 1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship." Our advantage:3S Service(Small Quantity/Short Time/Special Material)

Certifications

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese

ASTM/DIN/ISO/JIS/ASME Inconel X750 Blind Flange Class 150-2500 Plate Flange Ni Alloy ISO JIS ASME DIN Pressure 150-2500LB
