NXF ANSI/JIS/ASME/DIN/ISO/GB DN 15-1200 Class 150-2500 ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Blanks Figure 8 Blanks

Product Description

Alloy N (UNS N10003) is a nickel-base alloy that was invented at Oak Ridge National Laboratories as a container material for molten fluoride salts. It has good oxidation resistance to hot fluoride salts in the temperature range of 1300 to 1600°F (704 to 871°C).HASTELLOY N alloy has good oxidation resistance in air. It shows promise for continuous operations at temperatures up to 1800°F (982°C). Intermittent use at temperatures up to 1900°F (1038°C) may also be possible. No discernible oxidation could be measured for the alloy at temperatures up to 1200°F (649°C).HASTELLOY N alloy can be supplied, to order, in the forms of sheet, plate, and bar.

Blanks Figure 8 Blanks Flange is a pipe fitting, which is mainly used for easy maintenance. You can know its specific shape by painting the upper part of the "8" black. It is half a blind plate and half an iron ring. It is often used in pipeline flanges that need to change the process. The main materials are carbon steel, stainless steel, and alloys. It can be selected according to the pipeline pressure level and pipeline medium. It is usually used on pipelines with larger diameters. Usually, one end of the flange is used to occupy the spacing to keep the pipeline unobstructed. When necessary, it is replaced with a blind plate of the same thickness at the other end to cut off the pipeline. Avoid forced expansion of the pipeline due to temporary replacement of other blind plates, affecting the entire system.

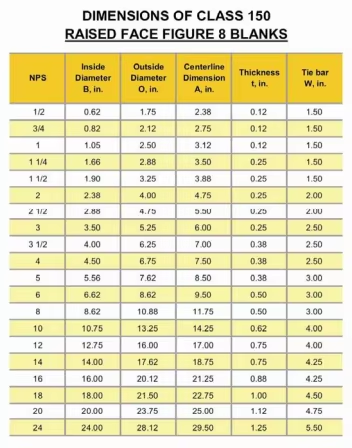

Alloy N/UNS N10003 Blanks Figure 8 Blanks Drawing

NXF ANSI/JIS/ASME/DIN/ISO/GB DN 15-1200 Class 150-2500 ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Blanks Figure 8 Blanks

Alloy N/UNS N10003 of Chemical composition and mechanical properties NXF ANSI/JIS/ASME/DIN/ISO/GB DN 15-1200 Class 150-2500 ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Blanks Figure 8 Blanks

NXF ANSI/JIS/ASME/DIN/ISO/GB DN 15-1200 Class 150-2500 ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Blanks Figure 8 Blanks

Product processing

NXF ANSI/JIS/ASME/DIN/ISO/GB DN 15-1200 Class 150-2500 ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Blanks Figure 8 Blanks

Specification

Shape	Equal
Head Code	Round
Customized support	OEM
Brand Name	NXF
Connection	Welding
Product name	Blanks Figure 8 Blanks
Material	Alloy N/UNS N10003
OD	DN 15-1200
Pressure	Class 150-2500
Application	Industry
Usage	Oil Gas Water Industrial
MOQ	1 Piece
Packing	Wooden Box

Packing & Delivery

NXF ANSI/JIS/ASME/DIN/ISO/GB DN 15-1200 Class 150-2500 ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Blanks Figure 8 Blanks

Company Profile

NXF ANSI/JIS/ASME/DIN/ISO/GB DN 15-1200 Class 150-2500 ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Blanks Figure 8 Blanks

Application Areas

NXF ANSI/JIS/ASME/DIN/ISO/GB DN 15-1200 Class 150-2500 ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Blanks Figure 8 Blanks

Certification

NXF ANSI/JIS/ASME/DIN/ISO/GB DN 15-1200 Class 150-2500 ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Blanks Figure 8 Blanks
